LED Light Manufacturing

Enjoy the Journey of An LED Light From Parts to Product

Learn how GaoRui manage the whole manufacturing process of LED light and complete your order on budget and on time, batch after batch.

LED Driver Manufacturing
LEDs Manufacturing
Light Housing Manufacturing
LED Lights Manufacturing
Testing and Packaging

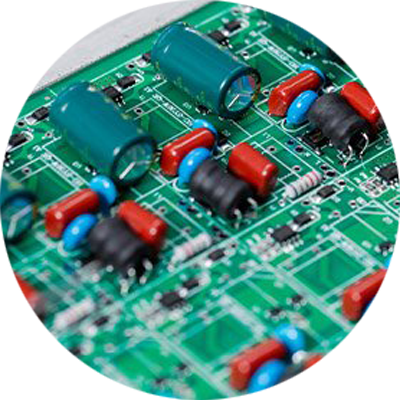

LED Driver Manufacturing

The heart of led light performance
The LED driver is a self-contained power supply which determines the way of dimming, how many LEDs we can use, running voltage, and more critical specs. Vorlane designs, builds, and tests your LED drivers in house so we can ensure stable quality and performance of the LED lights.

Design functions based on your needs

Assemble all components

Purchasing quality components

Test all drivers to ensure functionality

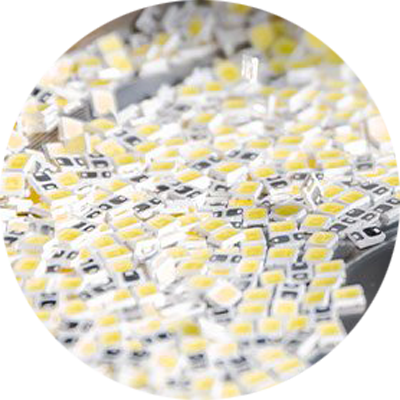

GaoRui LEDs Manufacturing

Where the world turns bright & colorful

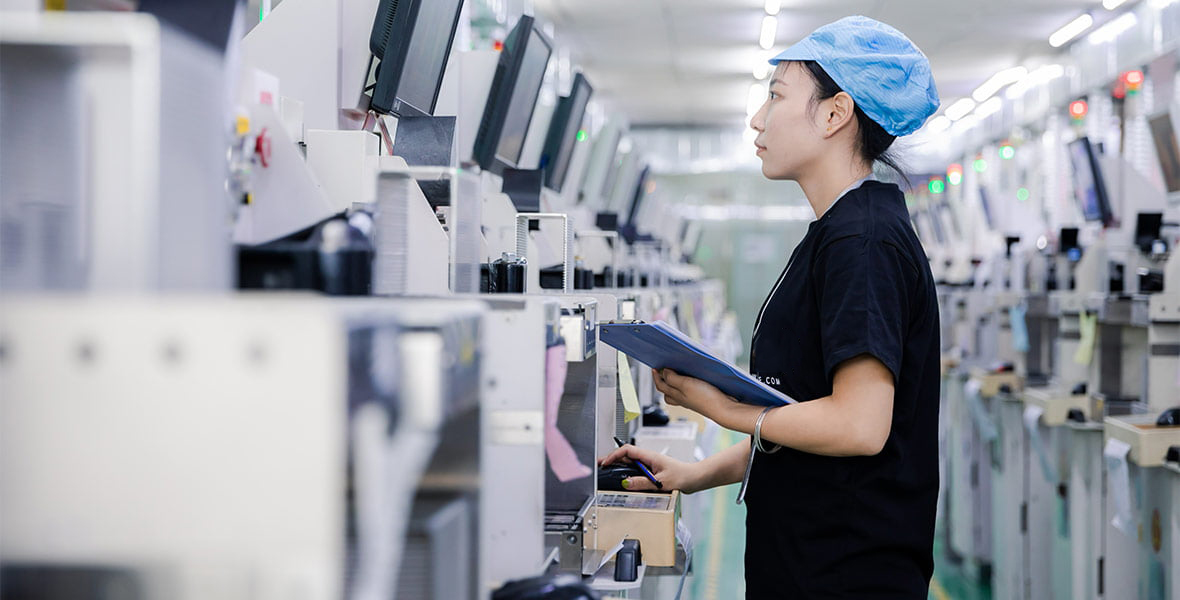

LED Chip Fixing

We purchased LED chips from SANAN, the largest company supplying high quality LED chips. In this procedure, the automatic LED chip fixing machine helps to suck LED chips from the tray and mount them on the PCB in a scientific order and realize automatic defective detection.

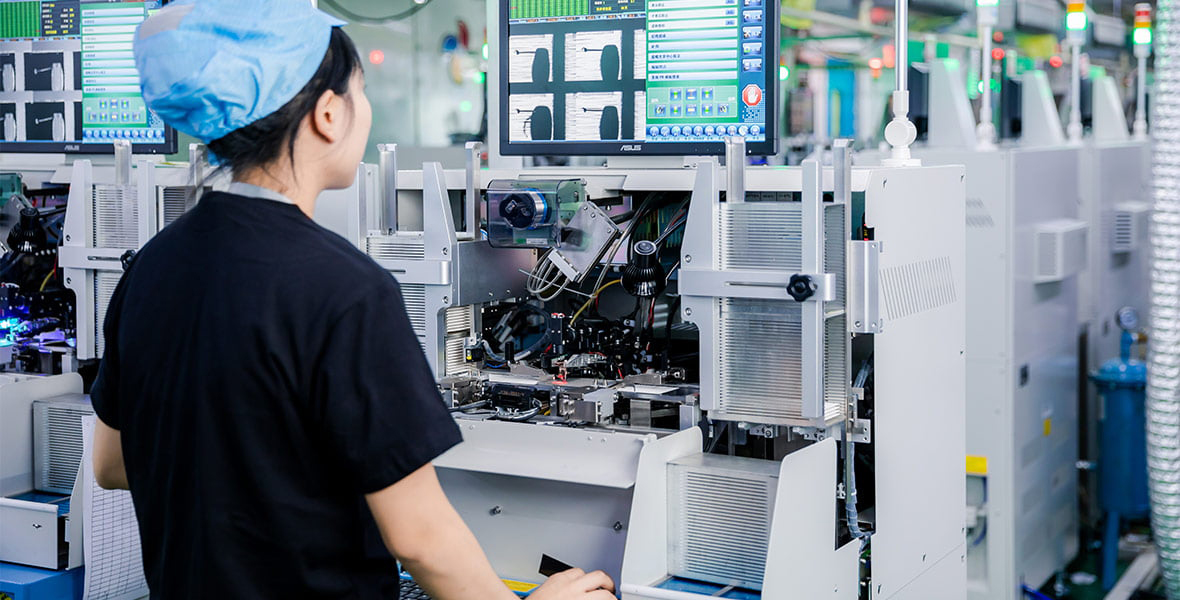

Wire Bonding

With chips correctly arranged on the PCB, the wire bonder is now assisting to turn the whole PCB into a closed circuit, so that the LEDs start to light when the driver brings specific voltage and current. Using 99.9% pure gold as the bonding wire, we are guaranteeing the bond doesn’t rust easily and lasts longer.

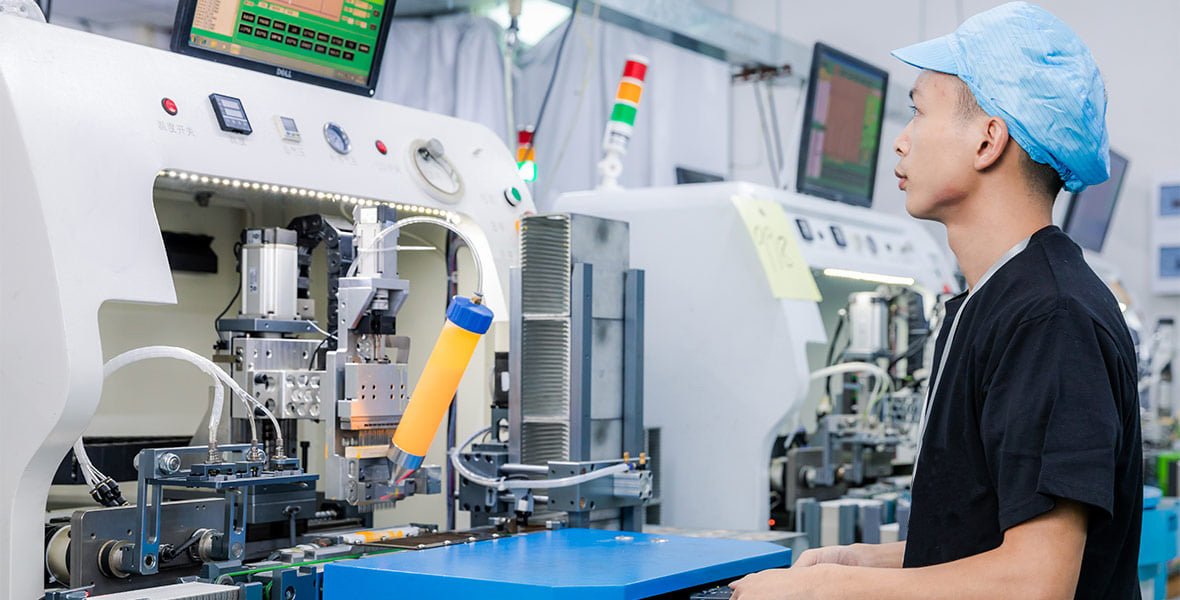

LEDs Color Toning and Gluing

The bonded PCB will then send to the color toning procedure, where the LEDs can shine any color our clients want. By adjusting the color of the glue as per the PANTONE color, we are assuring you that we can bring exactly the same color in all batches.

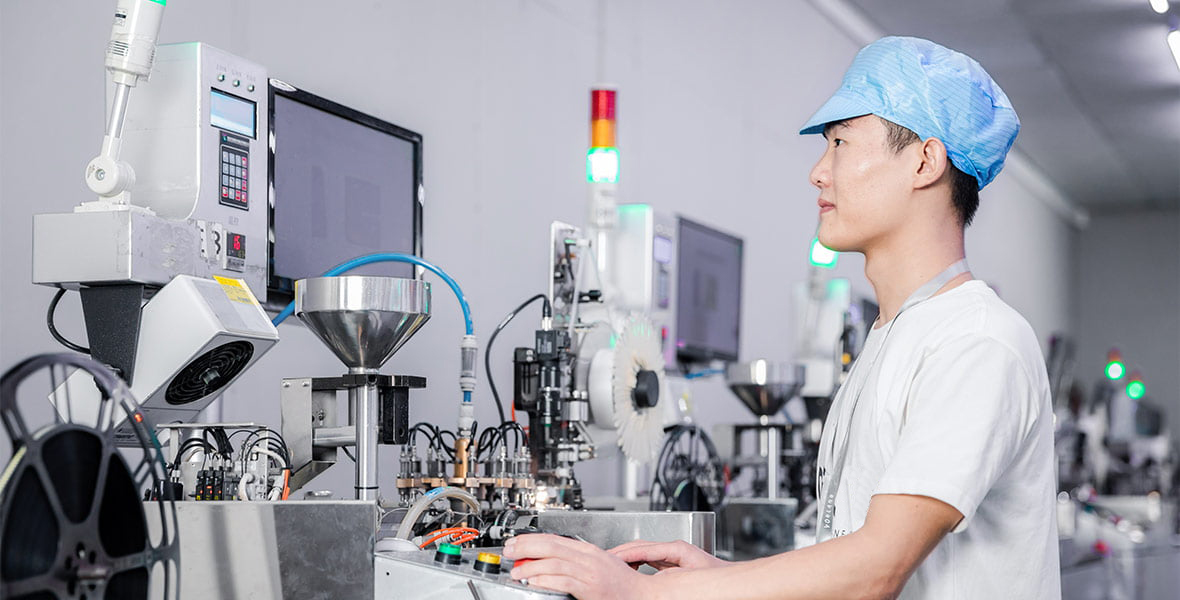

LEDs Sorting

All LEDs will be sorted by current, voltage, and color automatically with the help of the automatic spectrophotometer. In this process, any malfunctioning LEDs will also be removed. Then all the LEDs with the same spec will be connected with each other as a strip and shipped to the next workshop.

Sample Tests: Making Sure Quality of Mass Production

The sample acts as the bridge between quality components and quality mass production. Here in GaoRui, our unique approach is to test the sample again and again under the most severe condition so that all the components are working to ensure the performance.

Once the sample stand the tests, the QC team is responsible for recording its spec and providing BOM sheet for the mass production procedure.

Find Your Product

STEP 2

Electronic Performance Tests: For Safe Applications

Get a Quote

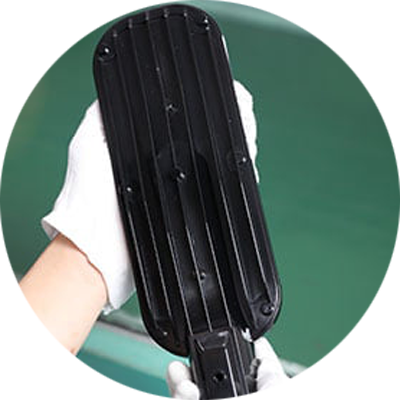

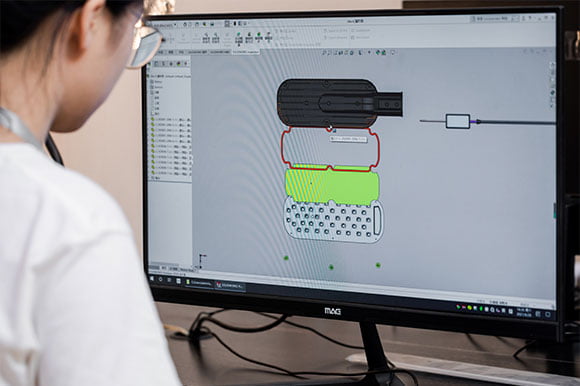

Mold Design

Cooperating with top mold designing agency, Vorlane is bringing the LED light housing design to life on the basis of thorough analysis of manufacturing flexibility. With a properly designed mold, the molding process is guaranteed to be efficient and safe.

Casting (Metal Housing)

In this process, melted metal (mostly aluminum) is injected into the mold cavity to form a shape of the housing. By strictly controlling the pressure and time, we are avoiding the housing from deformation and cracks.

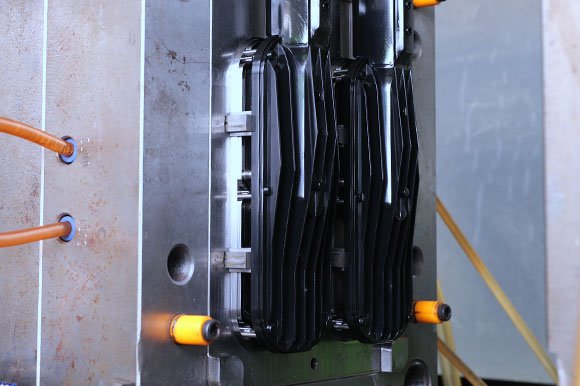

Mold Making

Applying the most sophisticated CNC machines and water jet cutters, Vorlane makes high precision mold with tight tolerance within ±0.01mm, so that the designed housing can be perfectly molded.

Injection Molding (Plastic Housing)

We purchased plastic pellets from Thailand to make sure we get the best plastic performance at the best price.

Using top injection molding machines YIZUMI, Vorlane made the injection molding procedure reliable and precise.

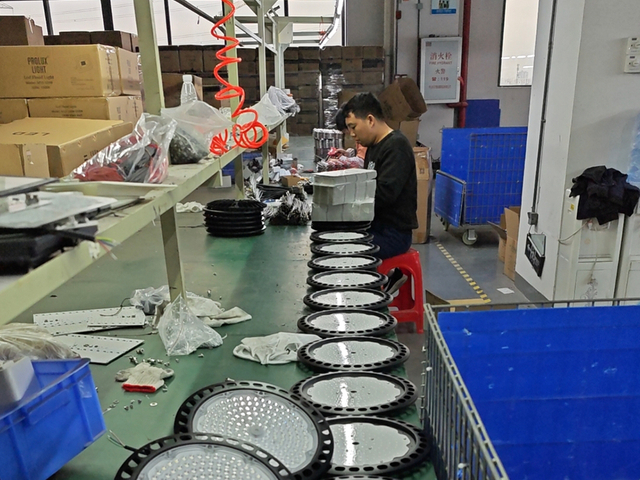

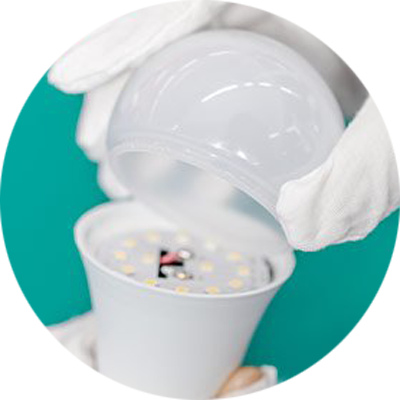

Assembling all the parts

LED Light Manufacturing

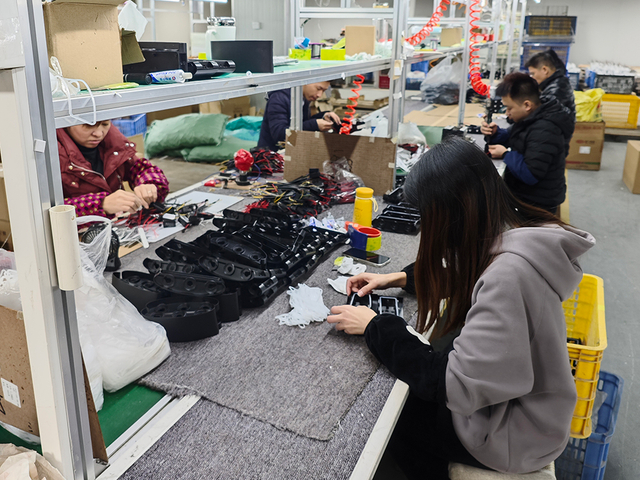

With LED drivers, LEDs, and housing prepared, the assembly workshop is here for joining all the parts together.

Vorlane follows standardized assembly process with the help of BOM sheet for each mode of LED light, indicating the correct way and standard to assemble the light. All workers must finish the assembly job as per the sheet

Find Your Solution

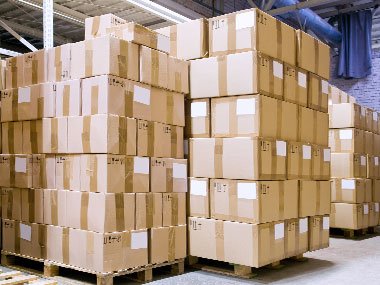

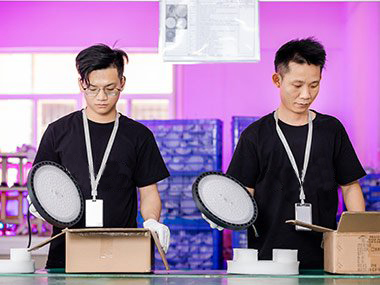

Testing and Packaging

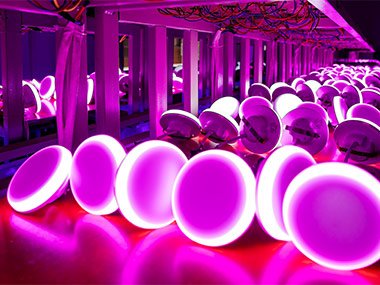

The assembled lights will be subject to a 24-hour aging test under high voltage of 2700V～3500V. Only when the lights pass the test will them be sent to the packaging lines.
