LED lighting manufacturing is more than assembling an LED board, a driver, and a housing. The performance of a finished luminaire depends on how these components are designed to work together, how accurately they are assembled, and how effectively manufacturing defects are identified before shipment.
For lighting manufacturers, every production stage presents different technical challenges. For importers, wholesalers, distributors, and project buyers, understanding these challenges provides a clearer picture of what separates a consistent product from one that may cause problems after installation.
This article explores the engineering behind LED lighting production, common manufacturing defects, factory testing methods, and the controls used to maintain product consistency.
Before a lighting product reaches the assembly line, its specifications must be translated into a practical manufacturing plan. This involves preparing components, checking compatibility, and defining how the finished luminaire should perform.
A product specification defines the requirements that production must meet. These may include rated power, input voltage, luminous flux, color temperature, protection rating, housing dimensions, and mounting arrangements.
However, specifications must also be translated into manufacturing details. The production team needs to know which components to use, how they connect, which assembly sequence to follow, and which inspections are required.
For example, a high-power outdoor light requires coordination between its LED module, driver, housing, and thermal design. Changing one component without checking the complete system may affect operating temperature, electrical performance, or product dimensions.
Clear manufacturing documentation helps ensure that production follows the approved design rather than relying on assumptions.
The next stage involves preparing the components needed for assembly.
These commonly include LED circuit boards, drivers, housings, heat-dissipating structures, lenses, reflectors, seals, cables, and mounting accessories. Solar lighting products may also require photovoltaic panels, batteries, and charging controllers.
Incoming components should be checked against the required specifications. Depending on the manufacturer's quality procedures, inspections may cover dimensions, appearance, electrical characteristics, model identification, and component condition.
This step is important because defects introduced before assembly can be difficult to identify once the fixture has been fully constructed.
Individual components may meet their own specifications but still perform poorly when combined.
An LED module must be compatible with its driver. The electrical output of the driver must suit the LED configuration, while the housing must provide appropriate mechanical support and thermal management.
Optical components must also match the light source and intended application. A lens designed for one LED arrangement may not produce the intended distribution when used with another.
Checking these relationships before production helps prevent avoidable rework and reduces the risk of discovering design problems during mass manufacturing.
The assembly process combines electronic, mechanical, and optical components into a functioning lighting product. The exact sequence varies by model, production equipment, and factory workflow.
Many LED luminaires use a printed circuit board that carries the LED packages and associated electronic components.
In surface-mount technology (SMT), automated equipment places components onto a prepared circuit board. Solder paste and controlled heating are commonly used to create electrical and mechanical connections.
The quality of this process influences the reliability of the LED board. Incorrect placement, insufficient soldering, or damaged components can result in electrical faults or inconsistent operation.
Depending on the product and manufacturing setup, inspections may include visual examination, automated optical inspection, or electrical checks.
The driver regulates the electrical power supplied to the LEDs. Its output characteristics must be suitable for the LED module and the intended operating conditions.
During assembly, the driver is connected to the LED board and input power wiring. The manufacturer must follow the product's wiring design and applicable electrical safety requirements.
Poor connections, incorrect wiring, or unsuitable driver selection can cause flickering, unstable operation, or complete product failure.
The driver should therefore be treated as an integral part of the lighting system, not simply an interchangeable accessory.
After the main electrical components are prepared, they are integrated into the luminaire housing.
Depending on the design, the assembly may include a heat sink, thermal interface material, mounting brackets, lenses, reflectors, protective covers, and seals.
The fit between components matters. Incorrect positioning or inadequate contact between heat-generating parts and the thermal structure can reduce heat transfer. Poorly fitted covers or seals can also compromise environmental protection.
Assembly instructions and inspection points help maintain consistent construction across production batches.
Automated equipment is useful for repeatable tasks such as component placement and soldering. Manual assembly may still be required for wiring, fastening, sealing, cable routing, and installing certain structural components.
Automation does not automatically guarantee a defect-free product, and manual assembly is not inherently inferior. Product complexity, equipment capability, operator training, and process control all affect the result.
A well-managed production line uses appropriate equipment and clearly defined procedures for each operation. Inspection is then used to confirm that the assembled product meets the required specifications.
Two LED luminaires can have similar appearances and rated wattages yet deliver different results. Their performance depends on the relationship between the electronic components, thermal design, optical structure, and materials.
LEDs and drivers generate heat during operation. If this heat is not managed effectively, component temperatures may rise beyond their intended operating conditions.
Manufacturers use different approaches to thermal management, including conductive housing materials, heat-dissipating fins, thermal interface materials, and suitable component layouts.
The effectiveness of the design depends on the complete thermal path. A large heat sink alone does not guarantee good heat dissipation if thermal contact is poor or the surrounding structure restricts heat transfer.
Thermal testing under defined operating conditions can help identify potential problems. For higher-power luminaires, thermal performance is particularly important because sustained high temperatures can affect light output, component reliability, and service life.
The driver determines how electrical power is delivered to the LED system. Its design influences operating stability, efficiency, and compatibility with the light source.
Important considerations include input voltage range, output current, electrical protection, power factor where relevant, and performance under the intended load.
A driver that is unsuitable for the LED module may cause unstable operation or excessive electrical stress. Incompatible components can also create difficulties when replacing drivers during maintenance.
For B2B projects, the driver specifications should be confirmed as part of the complete luminaire specification. Buyers should also clarify whether the driver model or brand may change between production batches.
Optical design determines where the light goes, how evenly it is distributed, and how much light reaches the intended area.
Lenses, reflectors, and diffusers influence beam angle, glare, uniformity, and light distribution. Their effect depends on the optical geometry and the characteristics of the LED source.
For example, a road lighting fixture may require a distribution pattern that directs light along the roadway. A flood light may need to cover a broad area, while a high bay fixture must provide suitable illumination from a higher mounting position.
Consequently, wattage and total luminous flux alone are not enough to establish whether a product is suitable for a particular project. Photometric data can provide a more useful basis for evaluation.
Outdoor lighting products are exposed to conditions such as rain, dust, sunlight, temperature changes, and, in some environments, corrosive substances.
The housing, protective cover, seals, fasteners, and surface finish all contribute to durability. Their suitability depends on the installation environment and the overall construction.
For instance, a housing material may provide adequate mechanical strength but still require appropriate surface treatment for a corrosive environment. Similarly, a waterproof design can fail if seals are damaged or installed incorrectly.
Material selection and assembly quality therefore need to be considered together. Product claims about corrosion resistance or ingress protection should be supported by relevant specifications and, where required, test documentation.
Manufacturing defects can originate at different points in the production process. Some are visible immediately, while others only become apparent during electrical testing, aging, installation, or use.
LED circuit boards may develop defects because of component placement errors, poor solder joints, damaged components, or problems with the soldering process.
Depending on the nature of the defect, the result may be an LED that does not illuminate, intermittent operation, uneven light output, or a circuit that fails under operating conditions.
Inspection after board assembly helps identify certain defects before the board is installed in the housing.
The exact inspection method depends on the board design and production equipment. Visual checks, automated optical inspection, and appropriate electrical tests may be used to identify problems.
Electrical wiring and mechanical assembly create another set of potential failure points.
Examples include loose terminals, incorrect wire connections, damaged insulation, missing fasteners, and improperly positioned components. These issues can affect safety, performance, and ease of maintenance.
A product may appear complete while still containing a connection that fails under vibration, temperature changes, or normal operating conditions.
Standardized wiring diagrams, controlled assembly procedures, and final functional checks help reduce these risks.
Outdoor luminaires often rely on gaskets, seals, protective covers, and correctly assembled cable entries to prevent water and dust from entering the housing.
Problems can occur if a gasket is damaged, a sealing surface is uneven, a cover is incorrectly positioned, or a fastener is not secured according to the assembly requirements.
Such defects may compromise the intended ingress protection even if the individual sealing components are suitable.
Where a specific IP rating is required, the product's claimed performance should be verified using the relevant test method. A visual inspection alone cannot establish compliance with an IP rating.
Mechanical and cosmetic defects may include scratches, uneven coatings, color differences, incorrect dimensions, or misaligned components.
Some defects affect appearance only, while others can interfere with installation, fastening, sealing, or structural performance.
For distributors and project buyers, inconsistent finishing can also create problems when products from different batches are installed together.
Manufacturers can reduce these issues through incoming inspection, controlled production processes, dimensional checks, and clear appearance standards.
Quality control works best when checks are distributed throughout production rather than postponed until the finished product is ready to ship.
In-process inspection examines components and assemblies at selected points in the manufacturing workflow.
Depending on the product, checks may cover soldering quality, wiring, component placement, fastener installation, sealing, and general assembly condition.
Finding a defect early can reduce the amount of work required to correct it. For example, identifying an incorrectly connected wire before the housing is closed is generally easier than diagnosing the same fault after the entire fixture has been assembled.
Inspection procedures should specify what is checked, how defects are recorded, and what action is taken when a product fails.
Electrical testing checks whether the assembled product operates as intended and, where applicable, meets relevant safety requirements.
Depending on the design and applicable standards, tests may include operating voltage and power checks, insulation resistance, dielectric withstand, grounding continuity, and functional operation.
Not every test applies to every fixture. The appropriate testing plan depends on the product's electrical construction and the requirements of its destination market.
For B2B orders, buyers should clarify which tests are routinely performed and which documents can be supplied to demonstrate compliance.
Photometric testing measures lighting performance rather than simply confirming that the fixture turns on.
Common parameters include luminous flux, luminous efficacy, color temperature, color rendering, and light distribution. The measurements required depend on the product specification and intended application.
Photometric testing can help identify whether a product meets its stated performance requirements. For project applications, the resulting data may also be used in lighting calculations or simulations.
Buyers should ensure that the test results correspond to the relevant model and configuration. Results from a different LED module or optical assembly may not represent the purchased product.
During aging tests, luminaires are operated for a specified period under defined conditions. The manufacturer may monitor operation and look for issues such as flickering, unexpected shutdowns, abnormal heating, or early component failure.
These tests can help detect certain early failures, but they cannot prove that a product will operate without problems for its entire service life.
Aging test results are meaningful only when the test conditions, duration, sample selection, and acceptance criteria are understood.
They should be considered alongside component quality, electrical testing, thermal design, and other relevant quality controls.
Final inspection verifies that the completed product meets the agreed requirements before packaging and shipment.
Depending on the product, this may include appearance, dimensions, accessories, labels, electrical operation, and confirmation that the correct model has been assembled.
When a defect is found, the product should be identified and handled according to the manufacturer's quality procedures. Depending on the problem, it may be repaired, reworked, retested, or rejected.
Clear records help prevent defective products from being unintentionally mixed with approved units and provide information for investigating repeated problems.
LED lighting products share many manufacturing principles, but their applications create different engineering priorities. The appropriate production and testing controls depend on the fixture's design and operating environment.
Street lights must distribute illumination across roads and surrounding areas according to the application requirements.
Optical design, housing construction, thermal management, electrical stability, and environmental protection are important considerations. Mounting arrangements and the mechanical structure also need to suit the installation.
Production checks should confirm that the correct optical components and electrical configuration have been used. Where required, photometric and ingress protection documentation can help verify the product's stated performance.

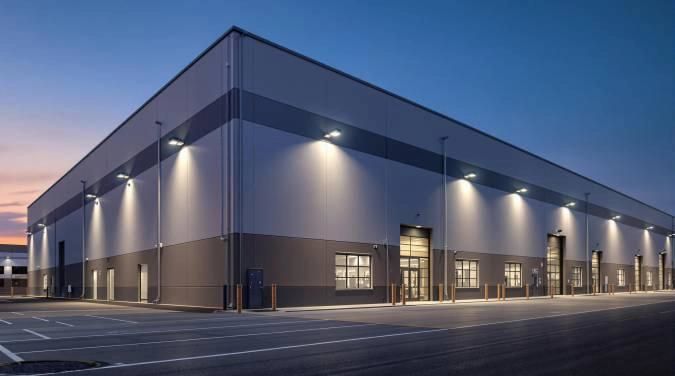

Flood lights are commonly used for building exteriors, industrial yards, sports areas, security lighting, and other applications that require area illumination.
Their performance depends on the relationship between power, optical distribution, mounting position, and the area being illuminated.
Thermal management is also important, particularly for higher-power models. Manufacturers need to ensure that the assembled product's thermal design and electrical components are suitable for its intended operating conditions.
The most appropriate testing requirements should be determined by the product specifications and project needs.
High bay lights are commonly installed in warehouses, factories, workshops, and logistics facilities with high ceilings.
These products need to provide suitable light distribution from their mounting height while operating reliably in the intended environment.
Thermal design, driver compatibility, optical configuration, and mechanical construction all contribute to performance. In industrial environments, additional considerations may include dust exposure, temperature, or other site-specific conditions.
Testing and inspection should reflect the intended application rather than relying on a generic checklist for every lighting product.
Garden lights are used in pathways, parks, residential communities, hotels, and landscape projects.
Their requirements may include visual consistency, weather resistance, mounting stability, and suitable light distribution for paths or landscaped areas.
Appearance and finish can be especially important when multiple fixtures are installed together. Dimensional consistency, coating quality, and component alignment help maintain a uniform result across the project.
Manufacturing controls should balance appearance with electrical performance and outdoor durability.
Solar lighting products include additional components beyond the LED module and driver. Depending on the design, these may include a photovoltaic panel, rechargeable battery, charging controller, and associated wiring.
The components must operate as a coordinated system. Battery capacity, charging characteristics, panel output, and power consumption all influence operating performance.
Manufacturing checks may therefore include verifying component configuration, electrical connections, charging operation, and lighting function under appropriate test conditions.
For solar products, testing only whether the LED illuminates is insufficient to establish that the complete system operates as intended.
A failed test should trigger a defined response rather than simply removing the product from the production line without further investigation.
The first step is to determine whether the problem originates from a component, an assembly operation, the product design, or the testing setup.
For example, a luminaire that fails to illuminate may have a faulty driver, a wiring error, a damaged LED board, or a poor connection.
A systematic investigation helps identify the actual cause instead of replacing components without understanding why the failure occurred.
Once the cause is understood, the manufacturer can decide whether the product can be repaired or reworked safely and in accordance with the applicable requirements.
The repaired product should undergo the relevant retesting before it is accepted.
Some defects cannot be corrected reliably or economically. In such cases, rejecting the affected unit may be more appropriate than allowing it to proceed to shipment.
Clear procedures help ensure that failed units are not accidentally included in approved production batches.
Recording failures provides information that can be used to improve the manufacturing process.
If the same defect appears repeatedly, the manufacturer may need to review component quality, assembly instructions, equipment settings, operator training, or product design.
This feedback loop is important because quality control should not only detect existing defects; it should also help prevent similar problems from occurring in future batches.
For B2B buyers, a manufacturer's ability to explain how defects are identified, corrected, and prevented can provide useful insight into its quality management practices.
Moving from a sample to a bulk order introduces another challenge: maintaining consistency across a larger number of products.
An approved sample provides a physical reference for the product's construction, appearance, and basic functionality.
However, a sample alone may not define every technical requirement. The purchase specification should also identify the relevant electrical parameters, components where specified, protection rating, accessories, finish, and packaging requirements.
Any approved changes should be documented so that production follows the latest agreed version.
Repeat orders should maintain the agreed product configuration unless a change has been approved.
Component substitutions can affect performance even when the external appearance remains similar. Manufacturers should have a process for controlling changes and communicating them when they affect the order requirements.
For buyers purchasing regularly, documented specifications and inspection records make it easier to compare samples, initial production, and later batches.
Before packaging, the manufacturer should confirm that the correct model, electrical configuration, accessories, and agreed customizations are present.
This is particularly important when several similar models are produced at the same facility.
Clear model identification, packaging labels, and order records help reduce the risk of incorrect products or missing accessories being shipped.
Packaging protects the finished luminaires during handling, storage, and transportation.
The packaging method should suit the product's dimensions, weight, construction, and shipping conditions. Depending on the order, requirements may include individual protection, carton labeling, shipping marks, and specified packing quantities.
Final packing checks help ensure that the products prepared for shipment match the confirmed order.
LED lighting quality is determined by a combination of component compatibility, engineering design, assembly accuracy, testing, and process control. No single inspection can replace the need to manage these factors throughout production.
Understanding how a luminaire is manufactured helps B2B buyers ask more specific questions about its construction, performance, and quality assurance. It also makes it easier to distinguish between products that merely share similar specifications and those supported by appropriate manufacturing controls.
