An IES file is a digital file that describes the photometric performance of a lighting fixture. It contains measured light distribution data that lighting design software can use to predict how a luminaire may illuminate a space. The Illuminating Engineering Society explains that these files describe luminous intensity distribution and can be used by lighting software to simulate lighting conditions.
For lighting distributors, contractors, and project buyers, an IES file provides information beyond basic product specifications. Wattage indicates power consumption, and lumens describe total light output, but neither tells the full story of where light will go or how evenly it will spread.
Two LED luminaires may have similar wattage and lumen output but produce very different lighting results. One may concentrate light into a relatively narrow area, while another distributes it over a wider space.
Photometric data describes how light intensity varies across different angles. Designers can use this information to assess whether a fixture suits a specific application, such as roadway illumination, warehouse lighting, or outdoor floodlighting.
Lighting software interprets photometric data to create visual representations of a fixture's light distribution. Common outputs include polar diagrams, intensity distributions, and simulated illuminance maps.
These diagrams help designers understand whether a luminaire directs most of its light downward, spreads it laterally, or concentrates it in a particular direction. A street light designed to illuminate a roadway may need a different distribution pattern from a flood light intended to cover a building facade.
Total lumen output alone cannot determine how effectively a luminaire illuminates a target area. Optical design, beam distribution, mounting position, and fixture orientation all influence the final result.
A high-output flood light may produce excessive brightness in one area while leaving other sections insufficiently illuminated. A fixture with a more suitable distribution may achieve better coverage without requiring the same number of lights.
IES data helps buyers compare products according to their intended use rather than relying exclusively on headline specifications.
An IES file becomes particularly valuable when it is used in lighting design software. Instead of estimating results from product photographs or beam-angle descriptions, designers can simulate how a specific luminaire may perform in a defined environment.
The quality of the simulation depends on the accuracy of the input data and the assumptions used in the model.
Lighting design programs import IES files to represent the photometric characteristics of a selected luminaire. Users can place fixtures within a digital model and specify mounting height, spacing, orientation, and the dimensions of the area being illuminated.
The software uses photometric data together with project geometry to calculate predicted light levels across selected surfaces. Designers can compare fixture models and layouts before purchasing equipment, helping reduce avoidable design changes during installation.
Illuminance measures the amount of light falling on a surface, expressed in lux or foot-candles. It differs from luminous flux, which measures the total light emitted by a source.
IES-based simulations can estimate illuminance at specific points and across a defined area. Designers may evaluate average illumination, minimum levels, maximum levels, and uniformity according to the requirements of the project.
For a warehouse, the target surface may be the floor or a designated work plane. For a road, the calculation grid may cover the carriageway.
A lighting simulation can reveal problems that may be difficult to identify from individual fixture specifications.
Dark areas may indicate insufficient fixture density, unsuitable optical distribution, or incorrect spacing. Excessive overlap may produce unnecessarily high illumination in certain areas, while poorly directed beams can send light outside the intended target.
Identifying these patterns early allows designers to adjust the layout, reposition fixtures, or compare alternative optical designs before installation begins.
IES data should always be evaluated in relation to the intended application. A distribution pattern that works well in one environment may be unsuitable in another, even if the fixture's power rating and lumen output appear appropriate.
Road lighting requires consideration of road width, pole height, pole spacing, mounting arrangement, and the required lighting performance.
An IES file helps designers evaluate how light is distributed along and across the roadway. Simulation results can help assess average road illuminance or luminance, uniformity, and other criteria required by the applicable road-lighting standard.
For project buyers, this means a street light should not be selected solely because it offers high lumen output. Its photometric distribution must also suit the road geometry and proposed installation.
High bay lights are commonly installed in warehouses, manufacturing facilities, logistics centers, and other spaces with relatively high ceilings.
At greater mounting heights, the relationship between beam distribution and fixture spacing becomes especially important. A narrow distribution may concentrate light beneath each fixture, while a wider distribution may provide broader coverage but can also increase overlap.
IES-based calculations allow designers to test fixture layouts against ceiling height, aisle arrangement, equipment locations, and required working-plane illuminance. This helps determine whether the proposed arrangement is likely to provide consistent coverage across the facility.
Flood lights are used in building exteriors, parking areas, industrial yards, sports facilities, and security lighting.
Their performance depends on beam spread, aiming angle, mounting position, and the dimensions of the target area. IES data allows designers to assess how a flood light distributes its output across a surface.
For outdoor projects, this is important for managing glare, reducing unwanted light spill, and achieving the required illumination without installing more fixtures than necessary.

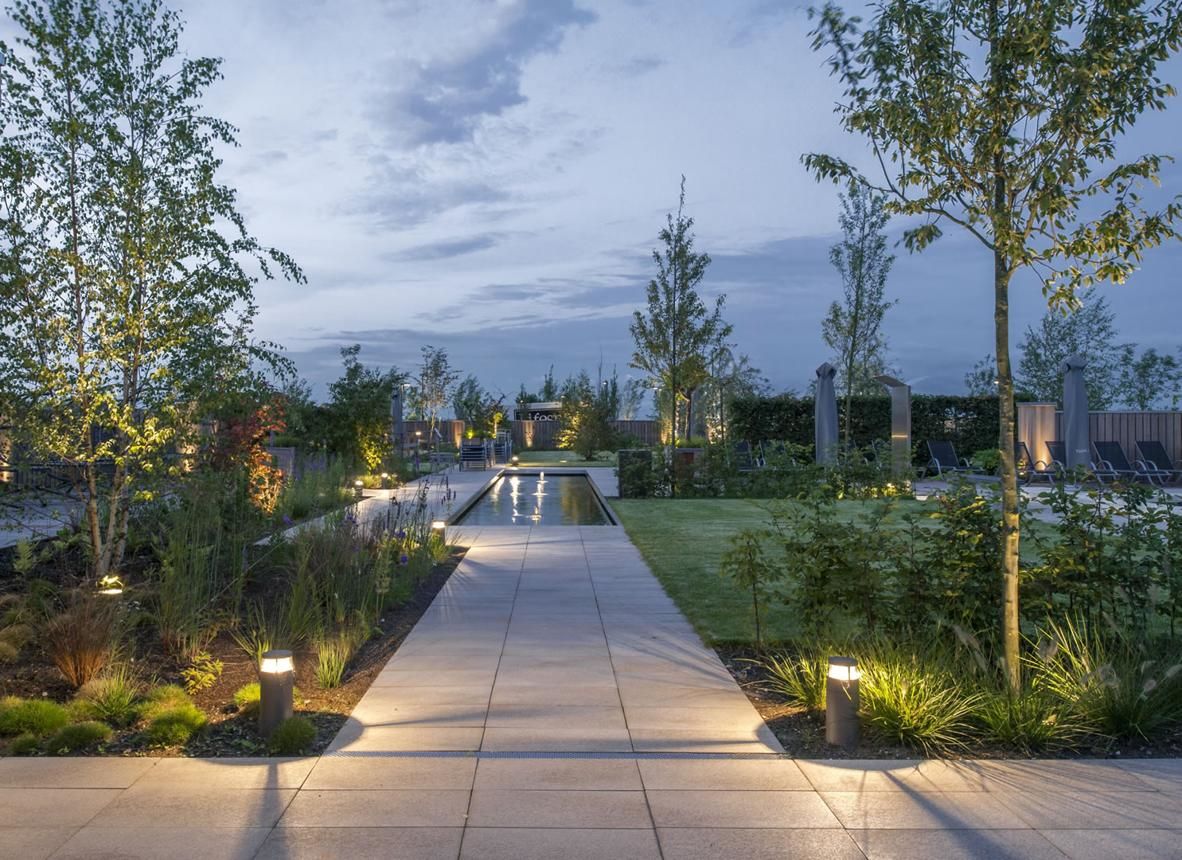

Garden and landscape lighting often has different objectives from road or industrial lighting. The design may need to illuminate pathways, entrances, planting areas, or architectural features while maintaining a comfortable nighttime environment.
IES data can help evaluate how a garden light distributes light around the fixture and whether the proposed placement supports the intended result. However, photometric data is only one part of landscape lighting design. Mounting position, surrounding vegetation, surface materials, and visual appearance also influence the final outcome.
An IES file is useful only when it accurately represents the luminaire being considered and is applied under appropriate design assumptions. A file associated with a similar product is not automatically suitable for the selected model.
Before importing an IES file into lighting software, confirm that it corresponds to the intended fixture and configuration.
Relevant details may include the model number, optical lens, light distribution option, LED configuration, and rated output. If a product range offers multiple beam angles or optical versions, the photometric data may differ between them.
Using a mismatched file can lead to misleading simulation results. Buyers should request photometric files associated with the exact model and configuration under consideration.
Even accurate photometric data cannot produce a meaningful project simulation if the installation parameters are incorrect.
Mounting height influences the area reached by the light and the illuminance on the target surface. Fixture spacing affects how individual distributions overlap. Orientation and aiming angle determine where the light is directed.
When project details are not yet finalized, testing several plausible arrangements and comparing the results can help identify layouts that accommodate practical installation constraints.
An IES-based simulation predicts lighting performance under a defined set of assumptions. It does not automatically account for every feature of a real site.
The result may be affected by the reflectance of walls, ceilings, and floors; obstructions; mounting tolerances; environmental conditions; and differences between the modeled environment and the completed installation.
Designers should also distinguish between initial illuminance and maintained illuminance. Over time, light output may decline because of LED depreciation, dirt accumulation, and other operating factors. Maintenance assumptions therefore matter when a project specifies illumination requirements over its service life.
IES data is an important design input, but it should be used alongside applicable standards, product specifications, installation information, and maintenance planning.
A completed lighting installation may produce results that differ from the original simulation. When this happens, the difference does not necessarily mean the IES file is incorrect. The source of the discrepancy needs to be investigated.
The reflectance of walls, ceilings, floors, and nearby structures can influence the amount of light present in an area. A model that assumes different surface properties from the actual site may predict different illuminance levels.
Outdoor environments introduce additional variables, including terrain, surrounding buildings, trees, and other obstructions. These features may block light or change how it reaches the target area. Accurate site information improves the usefulness of a simulation.
A luminaire installed at the wrong angle may direct light away from the intended area. Small changes in aiming direction can be significant when illuminating a narrow road, a facade, or a specific outdoor feature.
Physical obstructions can also create shadows that are absent from the original model. In warehouses, for example, tall storage racks may affect light reaching the floor or work surfaces.
During installation, fixtures should be positioned and aimed according to the approved lighting layout. If site conditions require changes, the design should be reviewed to determine whether the revised arrangement still meets project requirements.
After installation, illuminance measurements can help determine whether the lighting system performs as expected.
Measurements should be taken at appropriate locations and under controlled, documented conditions. The measurement grid, operating state, ambient lighting, and other relevant factors should be considered when comparing field results with the simulation.
If the results differ substantially, the investigation may include checking the installed fixture model, mounting height, aiming direction, electrical operation, and site conditions. For projects with strict performance requirements, commissioning measurements provide an important verification step that simulation alone cannot replace.
For distributors, contractors, and project buyers, photometric information can support more accurate product evaluation and project communication. The key is to request data that relates directly to the proposed application.
An IES file is more useful when accompanied by sufficient product information to identify the tested configuration and understand its performance.
Depending on the project, buyers may request:
The exact product model and optical configuration associated with the file.
Rated power, luminous flux, and relevant product specifications.
Available beam distributions or lens options.
Photometric test reports, where available.
Product dimensions, mounting instructions, and recommended installation arrangements.
Applicable electrical, environmental, and safety documentation.
Not every project requires every document. The appropriate information depends on the application, specification requirements, and stage of procurement.
The goal is to ensure that the data used for design and approval corresponds to the product that will actually be supplied.
Before confirming a lighting order, project teams should check that the proposed luminaire and its photometric data are suitable for the project's requirements.
This may involve reviewing lighting simulations, confirming the required distribution, checking installation constraints, and verifying that the selected model meets applicable project specifications.
If a design depends on a particular optical configuration, that configuration should be clearly identified in the product documentation and purchase specifications. Any proposed substitution should be reviewed before approval, because a different optical design may change the predicted lighting results.
For manufacturers and suppliers, providing consistent product information helps distributors and project buyers evaluate suitability more efficiently. It also reduces the risk of confusion between similar-looking products with different photometric performance.
IES files connect a lighting product's measured photometric performance with the practical requirements of a project. They allow designers to simulate light distribution, estimate illuminance, compare fixture layouts, and identify potential coverage problems before installation.
Their value lies in how accurately they represent the selected luminaire and how carefully they are applied to real installation conditions. A file should match the exact product configuration, and simulation results should be interpreted alongside project requirements, applicable standards, and on-site verification.
For LED lighting distributors, contractors, and project buyers, understanding IES data makes product evaluation more technical and evidence-based. Rather than choosing fixtures based on wattage or lumen output alone, teams can assess whether the lighting distribution is appropriate for the intended space.
When selecting LED street lights, flood lights, high bay lights, or garden lights for a project, reliable photometric data can support better planning, clearer communication with manufacturers, and more informed purchasing decisions.
