As governments, contractors, and businesses increasingly adopt renewable energy solutions, solar street lighting has become a preferred choice for outdoor illumination. However, selecting the right solar street light system is not always straightforward. The two most common options—All-in-One Solar Street Lights and Split Solar Street Lights—offer different advantages depending on the project requirements.
Factors such as installation environment, lighting performance, maintenance needs, climate conditions, and project budget all influence the decision. Understanding the differences between these systems can help maximize long-term performance and return on investment.

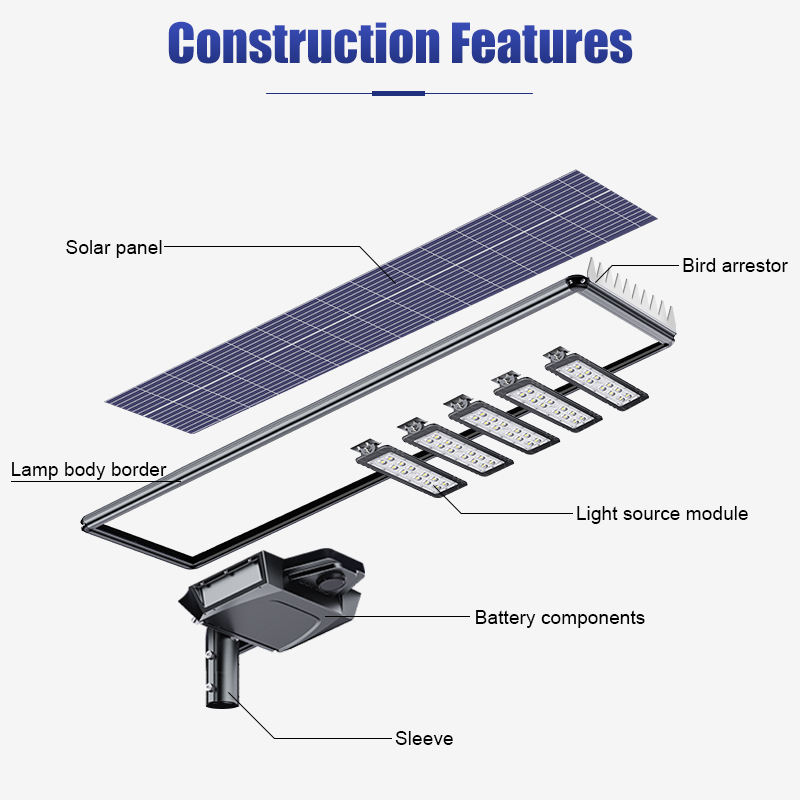

All-in-One Solar Street Lights integrate the solar panel, LED light source, lithium battery, and controller into a single compact fixture.
An all-in-one system typically includes:
High-efficiency solar panel
LED lighting module
Lithium battery
Intelligent charge controller
Motion sensor (optional)
Fast and simple installation
Minimal wiring requirements
Modern and compact design
Reduced installation labor costs
Lower risk of wiring failures
Limited solar panel size
Lower battery capacity compared to large split systems
Less flexibility for customization
Performance may be affected in regions with limited sunlight
All-in-one solar street lights are ideal for:
Residential roads
Community pathways
Parks and gardens
Small parking areas
Rural roads
Split Solar Street Lights separate the solar panel, battery, controller, and LED fixture into independent components connected by cables.
A split solar lighting system generally consists of:
Independent solar panel
LED street light fixture
Lithium battery pack
Solar charge controller
Mounting structure
Larger solar panels can be installed
Higher battery storage capacity
Better energy generation efficiency
Greater customization flexibility
Suitable for high-power lighting projects
More complex installation
Additional wiring required
Higher installation costs
Longer deployment time
Split solar street lights are commonly used for:
Municipal roads
Highways
Industrial parks
Large parking lots
Ports and logistics centers
All-in-one systems offer a plug-and-play design that significantly simplifies installation. Split systems require separate mounting and electrical connections, resulting in a more involved installation process.
Split solar street lights generally achieve higher charging efficiency because larger solar panels can be positioned independently for optimal sunlight exposure.
Split systems support larger battery banks, allowing longer operating times and more backup days during cloudy weather.
For high-power lighting applications, split systems often deliver superior performance due to greater energy storage and generation capacity.
All-in-one fixtures simplify maintenance because most components are integrated. Split systems may require additional inspection of wiring and external components.
Both systems can achieve long service lives when high-quality components are used. However, split systems often provide easier component replacement and upgrade options.
Modern all-in-one and split solar street lights are designed with robust weatherproof protection. Proper IP ratings and corrosion-resistant materials are essential for both systems.
All-in-one systems typically have lower installation costs, while split systems may require higher upfront investment due to additional components and labor.
Although split systems may cost more initially, they can provide better long-term value in large-scale projects requiring higher performance and longer operating hours.
All-in-one solar street lights are often the preferred choice because they offer simple installation, attractive appearance, and sufficient lighting performance.
Municipal projects may use either system depending on lighting requirements, road classifications, and budget considerations.
Split solar street lights are generally recommended for highways due to their ability to support larger solar panels and higher lighting outputs.
Industrial facilities typically require powerful and reliable illumination, making split systems a suitable solution.
Both options can be effective, but larger parking facilities often benefit from split solar street lighting systems.
Split systems are frequently selected for remote applications because they provide greater energy independence and extended backup operation.
In hot climates, battery temperature management becomes critical. Split systems allow batteries to be installed in locations with improved ventilation.
Coastal projects require corrosion-resistant materials and durable protective coatings to withstand salt exposure.
Regions with frequent rain benefit from larger solar panels and higher battery capacities to ensure consistent performance.
Split systems often perform better in snowy environments because solar panels can be installed at optimized angles to improve snow shedding and sunlight collection.
Pole height directly affects lighting coverage. Typical installations range from 5 to 12 meters depending on the roadway type.
The required wattage depends on road width, mounting height, and illumination standards.
Battery sizing should account for daily energy consumption and the required number of backup days.
Solar panels must generate sufficient energy to fully recharge batteries under local sunlight conditions.
Commercial solar street lighting projects commonly require 3–5 backup days to ensure reliable operation during prolonged cloudy weather.
Lighting performance should be evaluated using lumen output, battery capacity, and solar charging efficiency rather than wattage alone.
The battery is one of the most important components in any solar street lighting system. High-quality lithium batteries significantly improve reliability and lifespan.
A lower initial price does not always result in lower overall project costs. Long-term performance and maintenance should be considered.
Climate directly affects solar charging efficiency and battery performance. Environmental factors should always be incorporated into system design.
Lithium iron phosphate batteries are becoming increasingly popular due to their safety, long cycle life, and excellent reliability.
Intelligent control systems help optimize energy usage through dimming schedules and adaptive lighting strategies.
Remote monitoring platforms enable operators to track system performance, detect faults, and improve maintenance efficiency.
Self-cleaning technologies reduce dust accumulation on solar panels and help maintain charging efficiency in challenging environments.
GAORUI provides comprehensive OEM and ODM services to support distributors, wholesalers, contractors, and project developers.
Customized lighting solutions can be developed according to local regulations, project requirements, and environmental conditions.
Every solar street lighting product undergoes rigorous testing to ensure reliability, durability, and performance.
GAORUI has extensive experience delivering solar street lighting solutions for municipal, commercial, and industrial projects worldwide.
Neither system is universally better. The ideal choice depends on project requirements, lighting demands, installation conditions, and budget.
Both systems can achieve long service lives when equipped with high-quality components and properly maintained.
Split solar street lights are generally preferred for highways because they can support larger solar panels and higher illumination levels.
Split systems often perform better due to their larger battery capacity and greater solar energy generation capability.
Most commercial solar street lighting systems are designed to provide 3–5 days of backup operation, while some customized solutions can support even longer periods.
